AS3D Concept

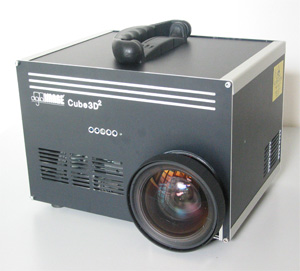

AS3D stereoscopic technology was developed by digital image, and inctroduced by the CUBE3D² at Eurographics 2006.

Parallel drive architecture
Two parallel image pipelines are used to drive one DMD (Digital Micromirror Device) from Texas Instruments. Allowing the Projector to display 120 Images/s instead of 60 Images/s. 120 Images are displayed alternatingly with 60Hz for each eye, resulting in a flickerfree appearance.

Active Stereo Technology advantage
Compared to other Stereoscopic technologies, active Stereo has a lot of advantages:

AS3D Stereo Technology advantage
is licensed by projectiondesign F10AS3D projector. Providing two independant digital inputs
for maximal 3D performance in a convenient small package.

2009 digital IMAGE presented AS3D Projector based on F32 from projectiondesign
For higher light output the first commercially available WUXGA Single Chip DLP 3D projector was presented Summer 2009. Later we developed FL32AS3D, a WUXGA 3D stereo projector with LED Lamp.

Mulri View Projection
The correct perspective is essential for 3D perception. In Multi Viewer 3D environments persons may be tracked, but the projection system just can present one 3D view - Resulting in incorrect views for non tracked viewers.

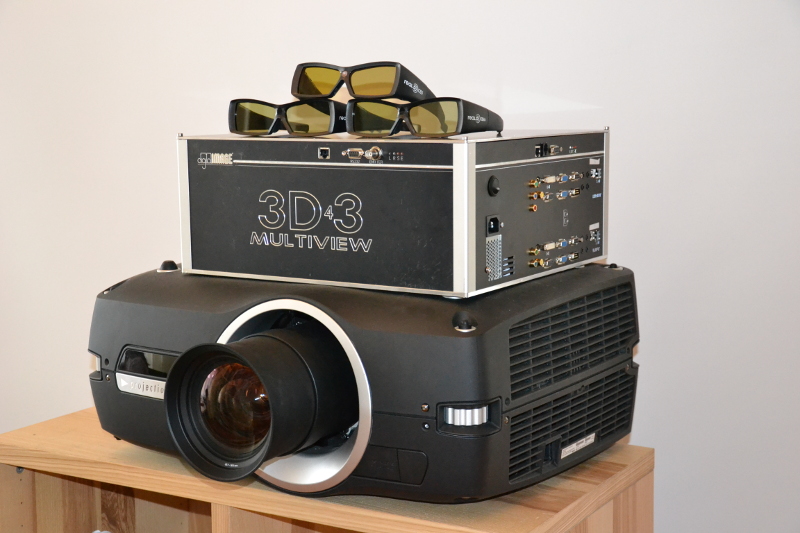

Our 6 View/12 Image 3D projection system provides independant images for 6 users.
Using our AS3D-XBAR technology and high speed shutters for high speed images.

Our 6 View/12 Image 3D projection system licensed by digital projection UK .
